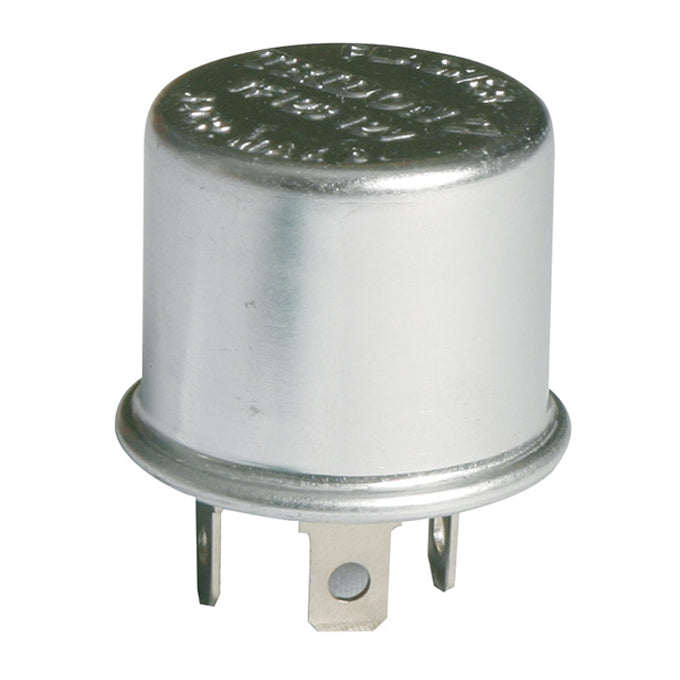

Tridon Thermal Flasher TF63

Flasher units are designed to control the flash rate of vehicle directional indicators; this is achieved by providing regular interruption of the electric current in the indicator circuit.

There are three common styles of flasher units: electro-mechanical, electronic and thermal. Tridon offers an extensive range of flasher units in load sensitive and non load sensitive types.

Thermal flashers operate by using a bi-metallic strip and contact and flash faster with increased load. Thermal flasher units do not conform to ADR13 and are only suitable for vehicles manufactured prior to 1990.

The flasher unit must be compatible with the vehicle electrical system; the Tridon flasher unit range has been carefully researched and engineered to suit each specific application.

• Part No. TF63
• Polarity sensitive - Can be used on negative ground vehicles only.
• Suitable for flasher & hazard light applications.
• Flash rate is influenced by load variation.
• Operating Voltage 5 - 9 volts D.C.
