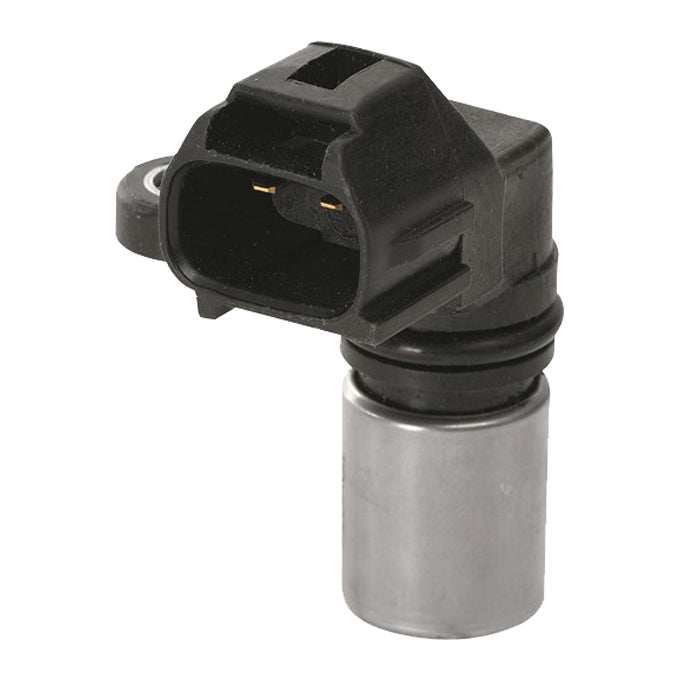

Tridon Cam & Crank Angle Sensor TCAS236

The camshaft position sensor (also referred to as a cam angle sensor) keeps your engine firing at the correct time. It works in unison with the crankshaft position sensor (or crank angle sensor) to determine the position of the camshaft in relation to the crankshaft. This information is transmitted to your ECU and then communicated to the injectors and ignition system so that the correct cylinders are firing at the correct time.

The crank angle sensor is an integral part of the modern vehicle engine management system. It provides accurate information of crankshaft speed and position; this is achieved through the use of an inductive pickup, hall effect or optical sensor. The crank angle sensor signal is used by the ECU to calculate correct ignition timing, correct fuel injector timing and control of engine RPM.

The crank angle sensor must be compatible with the vehicle ignition system; the Tridon crank angle sensor range has been carefully researched and engineered to suit each specific application. Some crank angle sensors look similar but are not interchangeable.

• Sensor only
