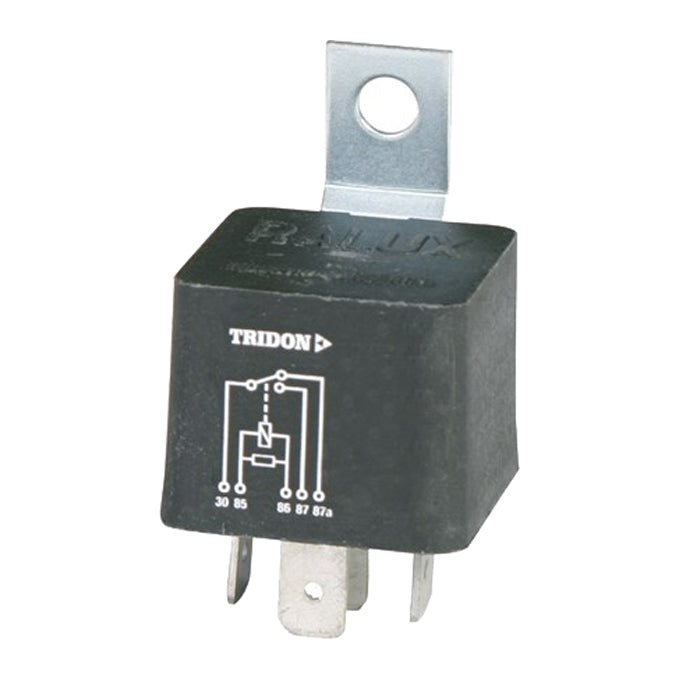

Tridon 5 Pin Changeover Mini Relay TR024

A relay is a remote electrical switch designed to provide direct current to the circuit load when activated by the switch (e.g. headlights, heater fan, or horn). The relay enables the circuit switch to carry less current during operation, reducing switch size, voltage drop and extending service life.

There are two common types of relays; normally open and changeover, available in 12v & 24v with resisted or non resisted circuits.

The relay must be compatible with the vehicle electrical system; the Tridon relay range has been carefully researched and engineered to suit each specific application.

• Part No. TR024

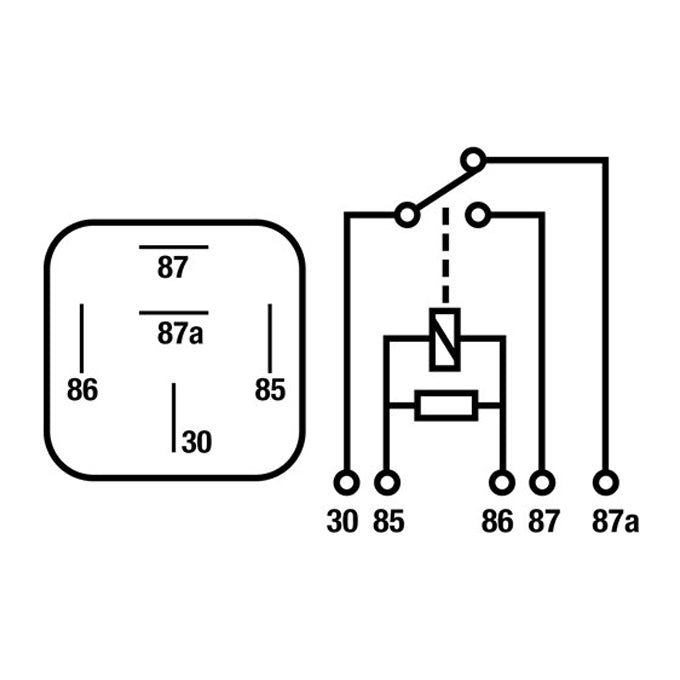

• 5 Pin Changeover Mini Relay
• Changeover resistor type.
• Removable straight bracket.
